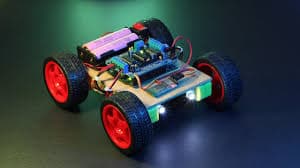

Bluetooth Control Car( Robotic Project)

  Back To Blogs

This proposal outlines the development of a Bluetooth-controlled car using an Arduino microcontroller. This car will be controllable remotely using a smartphone or tablet, offering a fun and educational introduction to robotics and electronics.

Project : 5


1. Introduction

This proposal outlines the development of a Bluetooth-controlled car using an Arduino microcontroller. This car will be controllable remotely using a smartphone or tablet, offering a fun and educational introduction to robotics and electronics.


2. Objectives

  • Design and build a car chassis using readily available materials.
  • Select and integrate an Arduino board and Bluetooth module for wireless communication.
  • Develop and implement control software on the Arduino for movement (forward, backward, turn left, turn right, stop).
  • Design a user interface for the smartphone/tablet app to control the car's movement. (This proposal focuses on the Arduino and car build, excluding the app development).

3.  Materials

  • Arduino Uno (or compatible board)
  • HC-05 Bluetooth Module
  • L298N Motor Driver Module
  • DC Motors (2x)
  • Battery Pack (e.g., Li-ion)
  • Breadboard and Jumper Wires
  • Wheels and Chassis (pre-built or DIY)
  • Additional components (e.g., caster wheel, mounting hardware)

4. Hardware Design

  • The car chassis will be constructed using materials like acrylic, wood, or Lego.
  • The Arduino board will be mounted securely on the chassis.
  • The L298N motor driver module will be connected to the Arduino to control the DC motors responsible for movement.
  • The HC-05 Bluetooth module will be interfaced with the Arduino for wireless communication with the smartphone/tablet app.
  • A battery pack will provide power to the entire system.

5. Software Development

  • Arduino IDE will be used to program the Arduino board.
  • The code will receive commands from the Bluetooth module and translate them into motor control signals for forward, backward, left, right, and stop functionalities.

7. Expansion and Future Work

  • The car can be enhanced by incorporating additional features like:
    • Sensors (e.g., ultrasonic sensor) for obstacle detection and line following.
    • LEDs for light effects or status indicators.
    • A smartphone app for a more intuitive user interface.
  • The project can be adapted to explore different locomotion mechanisms (e.g., tank treads, omnidirectional wheels)

Circuit Diagram:



  • Code:

    //This program is used to control a robot using a app that communicates with Arduino through a bluetooth module.



    #define in1 5 //L298n Motor Driver pins.

    #define in2 6

    #define in3 10

    #define in4 11

    #define LED 13

    int command; //Int to store app command state.

    int Speed = 204; // 0 - 255.

    int Speedsec;

    int buttonState = 0;

    int lastButtonState = 0;

    int Turnradius = 0; //Set the radius of a turn, 0 - 255 Note:the robot will malfunction if this is higher than int Speed.

    int brakeTime = 45;

    int brkonoff = 1; //1 for the electronic braking system, 0 for normal.

    void setup() {

      pinMode(in1, OUTPUT);

      pinMode(in2, OUTPUT);

      pinMode(in3, OUTPUT);

      pinMode(in4, OUTPUT);

      pinMode(LED, OUTPUT); //Set the LED pin.

      Serial.begin(9600);  //Set the baud rate to your Bluetooth module.

    }



    void loop() {

      if (Serial.available() > 0) {

        command = Serial.read();

        Stop(); //Initialize with motors stoped.

        switch (command) {

          case 'F':

            forward();

            break;

          case 'B':

            back();

            break;

          case 'L':

            left();

            break;

          case 'R':

            right();

            break;

          case 'G':

            forwardleft();

            break;

          case 'I':

            forwardright();

            break;

          case 'H':

            backleft();

            break;

          case 'J':

            backright();

            break;

          case '0':

            Speed = 100;

            break;

          case '1':

            Speed = 140;

            break;

          case '2':

            Speed = 153;

            break;

          case '3':

            Speed = 165;

            break;

          case '4':

            Speed = 178;

            break;

          case '5':

            Speed = 191;

            break;

          case '6':

            Speed = 204;

            break;

          case '7':

            Speed = 216;

            break;

          case '8':

            Speed = 229;

            break;

          case '9':

            Speed = 242;

            break;

          case 'q':

            Speed = 255;

            break;

        }

        Speedsec = Turnradius;

        if (brkonoff == 1) {

          brakeOn();

        } else {

          brakeOff();

        }

      }

    }



    void forward() {

      analogWrite(in1, Speed);

      analogWrite(in3, Speed);

    }



    void back() {

      analogWrite(in2, Speed);

      analogWrite(in4, Speed);

    }



    void left() {

      analogWrite(in3, Speed);

      analogWrite(in2, Speed);

    }



    void right() {

      analogWrite(in4, Speed);

      analogWrite(in1, Speed);

    }

    void forwardleft() {

      analogWrite(in1, Speedsec);

      analogWrite(in3, Speed);

    }

    void forwardright() {

      analogWrite(in1, Speed);

      analogWrite(in3, Speedsec);

    }

    void backright() {

      analogWrite(in2, Speed);

      analogWrite(in4, Speedsec);

    }

    void backleft() {

      analogWrite(in2, Speedsec);

      analogWrite(in4, Speed);

    }



    void Stop() {

      analogWrite(in1, 0);

      analogWrite(in2, 0);

      analogWrite(in3, 0);

      analogWrite(in4, 0);

    }



    void brakeOn() {

      //Here's the future use: an electronic braking system!

      // read the pushbutton input pin:

      buttonState = command;

      // compare the buttonState to its previous state

      if (buttonState != lastButtonState) {

        // if the state has changed, increment the counter

        if (buttonState == 'S') {

          if (lastButtonState != buttonState) {

            digitalWrite(in1, HIGH);

            digitalWrite(in2, HIGH);

            digitalWrite(in3, HIGH);

            digitalWrite(in4, HIGH);

            delay(brakeTime);

            Stop();

          }

        }

        // save the current state as the last state,

        //for next time through the loop

        lastButtonState = buttonState;

      }

    }

    void brakeOff() {



    }
