Play Buzzer with Touch(STEAM Education)

To understand the fundamental concept of sensors and their application in converting physical inputs into electrical signals.

Project : 23

Play Buzzer with Touch

If you want to post your project ,research or any document related to Ai,Ml,IoT,Robotics then please email us with your image ,details and your project at blog@nepatronix.org

Project Aim:

To understand the fundamental concept of sensors and their application in converting physical inputs into electrical signals.

Components Used:

1. Power Supply

2. Touch Sensor

3. Resistor 1K

4. Buzzer

5. Connecting Wires

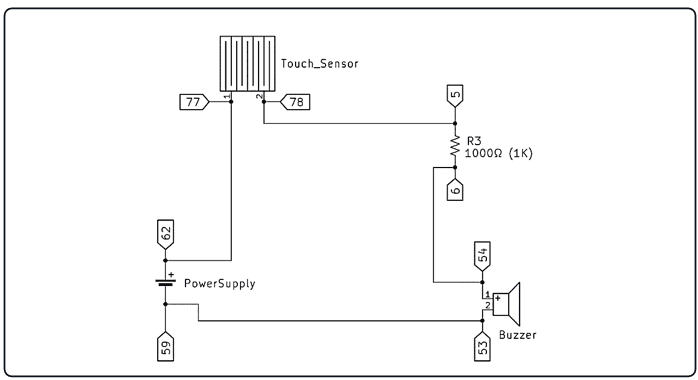

Circuit Diagram:

Connection Procedure:

Step 1: Connect the Positive terminal of the Power Supply (Pin 62) to the Touch Sensor (Pin 77).

Step 2: Connect the Output pin of the Touch Sensor (Pin 78) to one end of the Resistor 1K (R3, Pin 5).

Step 3: Connect the other end of the Resistor 1K (R3, Pin 6) to the Positive Terminal of the Buzzer (Pin 53).

Step 4: Connect the Negative Terminal of the Buzzer (Pin 54) to the Negative terminal of the Power Supply (Pin 59).
Step 5: Whenever we put finger on Touch Sensor, the Buzzer will BEEP.

Explanation:

This project introduces the concept of sensors, which are devices that can detect various inputs like light, heat, motion, and convert them into electrical signals. In our circuit, we utilize a touch sensor that detects the touch of a hand, converting it into electrical pulses. When a touch is detected, the circuit completes, allowing current flow and triggering the output, which is a beep sound from a buzzer. Through this project, we gain hands-on experience in understanding sensor functionality and circuit completion for practical applications.
