Basic Electronic
Basic electronics is a fundamental field
of study that deals with the behavior and manipulation of electronic devices
and circuits. It is the foundation upon which modern electronics and electrical
engineering are built. Basic electronics covers the principles and components
used in electronic circuits, and it is crucial for anyone interested in
understanding or working with electronic systems. Here's a brief description of
some key concepts in basic electronics:
1. Electrons and Current:
At the core of basic electronics is the understanding of electrons, which are
negatively charged particles. Electric current is the flow of electrons through
a conductor, and it is measured in amperes (A).
Example: When
you turn on a flashlight, the flow of electrons through the wires produces
current, which powers the light bulb.
2. Voltage:
Voltage, measured in volts (V), represents the electric potential difference
between two points in a circuit. It's what pushes electrons through a circuit.
It can be thought of as the force that drives current.
Example:
A common example is a household battery (e.g., AA, AAA). The voltage provided
by the battery powers devices like remote controls.
3. Resistance:
Resistance, measured in ohms (Ω), is a property of a material that opposes the
flow of current. It is responsible for converting electrical energy into heat
in components like resistors.
Example:
A resistor in an LED circuit limits the current and prevents the LED from
burning out. It's like a traffic bottleneck for electrons.
4. Circuits:
Electronic circuits are pathways that allow current to flow and perform
specific functions. Circuits can be open (no current flows) or closed (current
flows).
Example:

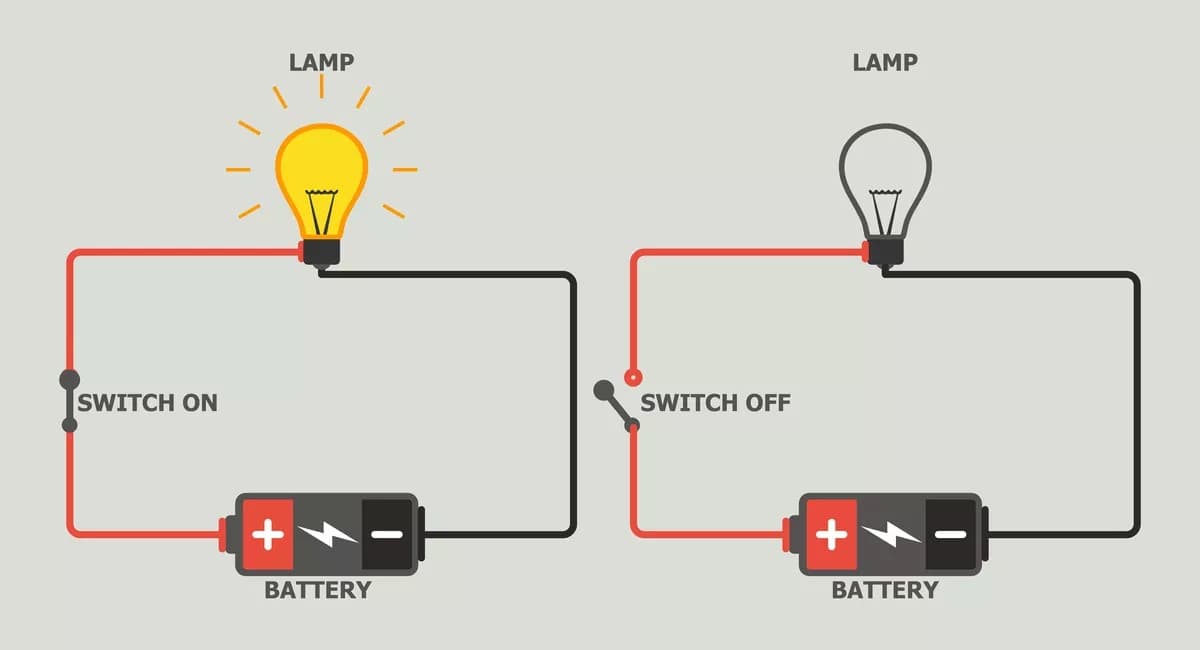

An example is a simple flashlight circuit. When you close the switch, the
circuit is completed, and current flows, lighting up the bulb.
5. Components:
Basic electronic components include resistors, capacitors, inductors, diodes,
transistors, and integrated circuits (ICs). These components are used to build
various electronic circuits.
Resistor: Resistors
are used to limit current and voltage in a circuit. A resistor is used in a
device or circuit to control the sensitivity of the device. There are various
type resistor with its resistance value:
Purpose of a Resistor:
Limiting Current:
The primary purpose of a resistor is to limit the amount of current that flows
through a circuit. It acts as a barrier to the flow of electrons, reducing the
current to a desired level.
Voltage Division:
Resistors are also used to divide voltage in a circuit. By connecting resistors
in series or parallel, you can create voltage dividers that allow you to obtain
specific voltage levels at different points in the circuit.
Construction:
Resistors are typically small, cylindrical
components made of a material with a high resistance, such as carbon, metal, or
a ceramic compound.
They have two terminals, allowing them to
be connected in series with other components within a circuit.
Resistance Value:
The resistance of a resistor is measured
in ohms (Ω). It is a numerical representation of how effectively the resistor
restricts the flow of current.
The resistance value is usually marked
with color bands on the resistor body, and these color codes are used to
determine the resistance value.
Color Code for Resistor Values:
The color bands on a resistor can be used
to determine its resistance value. Each color corresponds to a specific digit,
and the color bands' order conveys the resistance value. Common color codes use
four or five bands to represent resistance values, tolerance, and temperature
coefficients.
Tolerance:
Resistor tolerance specifies how closely
the actual resistance of the component matches its stated resistance value.
Tolerance is expressed as a percentage.
For example, a resistor with a 5%
tolerance might have a marked resistance value of 1,000 ohms (1 kΩ) but could
have an actual resistance between 950 ohms and 1,050 ohms.
Power Rating:
The power rating of a resistor indicates
the maximum amount of power (in watts) that the resistor can safely dissipate
as heat. Using a resistor with a power rating lower than required can cause it
to overheat and fail.
Types of Resistors:
There are various types of resistors,
including carbon composition, metal film, and wirewound resistors. The choice
of resistor type depends on factors like the application, required precision,
and power handling capacity.
Color coding
Color coding is commonly used on resistors
to represent their resistance values, tolerance, and sometimes temperature
coefficients. The standard resistor color code consists of three, four, or five
color bands on the resistor's body. To determine the resistance value,
tolerance, and sometimes the temperature coefficient of a resistor using the
color code, you can use the following formulas:
Resistance Value (Three-Band
Resistor):
The first two bands represent the
significant digits of the resistance value, and the third band represents the
multiplier. Use the following formula:
Resistance (in ohms) = (Digit 1 * 10 +
Digit 2) * 10^Multiplier
Resistance Value (Four-Band Resistor):
The first three bands represent the
significant digits of the resistance value, and the fourth band represents the
multiplier. Use the following formula:
Resistance (in ohms) = (Digit 1 * 100 +
Digit 2 * 10 + Digit 3) * 10^Multiplier
Tolerance (Four-Band Resistor):
The fourth band represents the tolerance.
Use the following formula:
Tolerance = Tolerance Value (%)
Temperature Coefficient (Five-Band
Resistor):
The first three bands represent the
significant digits, the fourth band represents the multiplier, and the fifth
band represents the temperature coefficient. Use the following formula:
Temperature Coefficient = Temperature
Coefficient Value (ppm/°C)
Here's a simple and memorable way to
remember the colors and their corresponding values for the four-band resistor
color code:
Black, Brown, Red, Orange, Yellow, Green,
Blue, Violet, Gray, White
Black: 0
Brown: 1
Red: 2
Orange: 3
Yellow: 4
Green: 5
Blue: 6
Violet: 7
Gray: 8
White: 9
"Bad Boys Run Our Young Girls
Behind Victory Garden Walls"
This mnemonic phrase can help you remember
the sequence of colors and their corresponding numerical values. Each word
corresponds to a color starting from black (0) to white (9).
For the multiplier (the number of zeros to
add), you can use the following codes for the fourth band:
Gold (Multiplier ×0.1)
Silver (Multiplier ×0.01)
For the tolerance, use:
Brown (±1%)
Red (±2%)
Gold (±5%)
Silver (±10%)
With these codes and the formulas
mentioned earlier, you should be able to determine the resistance value,
tolerance, and temperature coefficient of most four-band resistors using the
color code.
Example of calculation of Resistor
Applications:
Resistors are used in countless electronic
circuits and devices, from simple LED circuits to complex amplifier circuits
and digital electronics.
They are used to set biases in
transistors, divide voltages, limit current in LEDs, and provide specific
resistance values for various purposes.
Capacitor:
Capacitors store and release electrical energy. A
capacitor is an essential passive electronic component used in electrical and
electronic circuits to store and release electrical energy. It is characterized
by its ability to store an electric charge and release it when needed.
Capacitors are versatile and serve various purposes in electronics. Here's a
detailed description of capacitors:
1. Construction:
A typical capacitor consists of two
conductive plates separated by an insulating material, known as a dielectric.
The conductive plates are often made of metal and can be flat or rolled into a
cylindrical shape.
The dielectric material plays a crucial
role in a capacitor's performance. It determines the capacitance value and can
be made from materials like ceramic, aluminum oxide, tantalum, or even air.
2. Function:
A capacitor stores electrical energy in
the form of an electric field. When a voltage is applied across the plates,
electrons accumulate on one plate, creating a negative charge, while the other
plate becomes positively charged. This separation of charges creates an
electric field between the plates.
This stored charge can be released when
needed, providing a temporary burst of electrical energy.
3. Capacitance:
The ability of a capacitor to store
electrical charge is quantified by its capacitance, which is measured in farads
(F). One farad is a relatively large unit, so capacitors are often rated in
microfarads (μF), nano-farads (nF), or picofarads (pF).
The capacitance value depends on the
surface area of the plates, the distance between them, and the type of
dielectric material.
4. Types of Capacitors:
There are various types of capacitors,
each with its characteristics and best-suited applications:
Ceramic Capacitors:
Commonly used for filtering and decoupling applications due to their small size
and low cost.
Electrolytic Capacitors:
Used for larger capacitance values, they are polarized and often used in power
supply circuits.
Tantalum Capacitors:
Known for high reliability and stability, often used in precision applications.
Film Capacitors:
Made of plastic or metal film, used for applications requiring high precision
and low losses.
Supercapacitors (Ultracapacitors):
Store much larger amounts of charge and are used in applications where rapid
energy discharge is required, like in some electric vehicles.
5. Applications:
Capacitors have a wide range of
applications, including:
Energy Storage:
They are used in flash cameras to store energy and discharge it quickly for the
flash.
Power Conditioning:
Capacitors in power supply circuits help smooth voltage and filter out noise.
Signal Coupling:
They can couple AC signals from one part of a circuit to another.
Timing Circuits:
Capacitors, in combination with resistors, can create timing circuits in
oscillators and timers.
Motor Start Capacitors:
In some electric motors, capacitors are used to provide an initial boost to
start the motor.
6. Polarization:
Electrolytic and tantalum capacitors are
polarized, which means they have a specific orientation and voltage polarity
they must be connected in. Connecting them backward can lead to damage or
failure.
Calculation of capacitance
Calculating the capacitance of a capacitor
is straightforward, especially if you know the area of the plates, the distance
between them, and the dielectric constant of the material between the plates.
The formula for capacitance is:
C = (ε * A) / d
Where:
C
is the capacitance in farads (F).
ε
(epsilon) is the permittivity of the dielectric material between the plates.
A
is the area of one of the plates in square meters (m²).
d
is the distance between the plates in meters (m).
Here's an easy method to remember the
formula:
C
is for Capacitance.
ε
(epsilon) is for the Electric constant (also known as permittivity), which is a
property of the dielectric material. Different dielectric materials have
different permittivity values, and it affects the capacitor's ability to store
charge.
A stand
for the Area of one of the plates. It's the surface area of the plate exposed
to the dielectric.
d
represents the Distance between the plates.
Remember that the values should be in
standard SI units (square meters for area and meters for distance) to get the
capacitance in farads. If you have values in other units, be sure to convert
them to the appropriate SI units before calculating the capacitance.
Inductor: Inductors
store energy in a magnetic. An
inductor is a passive electronic component that stores energy in the form of a
magnetic field when an electric current passes through it. It resists changes
in the flow of current, which means it opposes the rate of change of current.
Here's a description of inductors, along with an example and a simple method to
remember how to calculate inductance:
1. Construction:
An inductor is typically composed of a coil
of wire wound around a core. The core material can be air, iron, or a magnetic
material.
When current flows through the coil, it
creates a magnetic field around it.
2. Function:
The primary function of an inductor is to
store energy in its magnetic field. When the current through the inductor
changes, it induces a voltage in the opposite direction, which opposes the
change in current.
This property makes inductors useful in
various applications, such as filtering out high-frequency noise in circuits or
in energy storage and voltage regulation.
3. Inductance:
The measure of an inductor's ability to
store energy in its magnetic field is called inductance. It is measured in
henrys (H).
The inductance value depends on factors
like the number of turns in the coil, the cross-sectional area, and the type of
core material used.
4. Example:
Application: Consider
a basic scenario of a coil used in a car's ignition system.
Function:
The ignition coil, an inductor, is responsible for storing electrical energy
and then releasing it as a high-voltage pulse to create a spark that ignites
the fuel in the engine. This controlled release of energy is crucial for the
engine to function efficiently.
5. Calculation of Inductance:
The formula to calculate the inductance of
an inductor is as follows:
L = (N² * μ₀ * A) / l
Where:
L
is the inductance in henrys (H).
N
is the number of turns of the wire in the coil.
μ₀
(mu-zero) is the permeability of free space, a constant (approximately 4π x
10^(-7) H/m).
A
is the cross-sectional area of the coil's core in square meters (m²).
l
is the length of the coil in meters (m).
Simple Method to Remember the Formula:
To remember the formula for inductance,
think of it as "NLAM," which stands for Number of turns (N),
Permeability of free space (μ₀), Area (A), and Length (l).
-
Diodes allow current to flow in one direction only.
-
Transistors can amplify or switch electronic signals.
-
Integrated Circuits (ICs) are miniaturized electronic circuits with various
functions, such as microprocessors or amplifiers.
6. Ohm's Law:
Ohm's Law is a fundamental principle in electrical engineering and electronics
that describes the relationship between voltage (V), current (I), and
resistance (R) in an electrical circuit. It states that:
V = I * R
Where:
V
(Voltage) is measured in volts (V).
I
(Current) is measured in amperes (A).
R
(Resistance) is measured in ohms (Ω).
Ohm's Law essentially states that the
voltage across a component or circuit is directly proportional to the current
passing through it, and this relationship is determined by the resistance of
the component or circuit.
Here's a simple example of Ohm's Law in
action:
Example: Let's say you have a resistor
with a resistance of 100 ohms (R = 100 Ω), and you apply a voltage of 10 volts
(V = 10 V) across it. Using Ohm's Law, you can calculate the current passing
through the resistor (I).
I = V / R
I = 10 V / 100 Ω
I = 0.1 A
So, in this example, the current passing
through the 100-ohm resistor is 0.1 amperes, or 100 milliamperes (mA).
7. Kirchhoff's Laws:
Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL) are fundamental
rules that govern the behavior of electric currents and voltages in circuits.
Kirchhoff's Laws are two fundamental
principles in electrical circuit theory that are used to analyze and solve
complex electrical circuits. They are named after Gustav Kirchhoff, a German
physicist. The two laws are Kirchhoff's Current Law (KCL) and Kirchhoff's
Voltage Law (KVL). Here's a description of both laws and their formulas, along
with a small calculation example:
1. Kirchhoff's Current Law (KCL):
Kirchhoff's Current Law states that the
total current entering a junction (or node) in an electrical circuit must be
equal to the total current leaving the junction. In other words, it asserts the
principle of conservation of electric charge.
Formula for KCL: At
any node in a circuit, the sum of currents entering the node is equal to the
sum of currents leaving the node.
KCL Formula: ΣI_in = ΣI_out
2. Kirchhoff's Voltage Law (KVL):
Kirchhoff's Voltage Law states that in any
closed loop in an electrical circuit, the algebraic sum of the electromotive
forces (emfs, typically voltages) and the voltage drops is equal to zero. This
law is based on the principle of the conservation of energy.
Formula for KVL: In any closed loop in a
circuit, the sum of all voltages (emfs and voltage drops) is equal to zero.
KVL Formula: ΣV_emf - ΣV_drop = 0
Small Calculation Example:
Let's consider a simple circuit with two
resistors and a battery. The circuit consists of a 12-volt battery (V_emf), a
4-ohm resistor (R1), and an 8-ohm resistor (R2) connected in series.
Using Kirchhoff's Voltage Law (KVL), we
can calculate the voltage drop across each resistor and check if the law holds
true.
Step 1:
Assign the direction of current (conventional current flow) and label the
voltage drops:
The current flows from the positive
terminal of the battery to the negative terminal (conventional current
direction).
Across resistor R1, there's a voltage
drop, which we'll call V_drop_R1.
Across resistor R2, there's another
voltage drop, which we'll call V_drop_R2.
Step 2:
Apply KVL to the circuit:
ΣV_emf - ΣV_drop = 0
12V - V_drop_R1 - V_drop_R2 = 0
Step 3:
Calculate the voltage drops:
The voltage drop across R1 (V_drop_R1) can
be calculated using Ohm's Law: V_drop_R1 = I * R1. Since the two resistors are
in series, the current through both of them is the same. Let's call it I.
For R2, V_drop_R2 = I * R2.
Step 4:
Substitute the values and solve for I:
12V - (I * 4Ω) - (I * 8Ω) = 0
12V - 12ΩI = 0
12ΩI = 12V
I = 1A
So, the current flowing through the
circuit is 1 ampere. This confirms that Kirchhoff's Voltage Law is satisfied in
this circuit.
8. Power: Power,
in the context of electrical circuits and physics, is the rate at which energy
is transferred or converted from one form to another. It quantifies how quickly
work is done or how quickly energy is used or generated. The formula for
electrical power is:
P = VI
Where:
P is
the power in watts (W).
V
is the voltage in volts (V).
I is
the current in amperes (A).
In simple terms, this formula states that
the power is equal to the product of the voltage and current in an electrical
circuit.
Example Calculation of Power:
Let's consider a basic example to
calculate electrical power. You have a device connected to a 120-volt power
source, and it draws a current of 5 amperes. To find the power consumption of
the device, you can use the power formula.
P = VI
P = 120 V * 5 A
P = 600 W
In this example, the device consumes 600
watts of electrical power. This means that it is using energy at a rate of 600
joules per second (since 1 watt = 1 joule per second). The electrical power
consumption is a measure of how quickly the device is converting electrical
energy into other forms, such as mechanical work, heat, or light.
circuits, which affect how components are
connected and how current flows.
Microcontroller
A microcontroller is a compact integrated
circuit (IC) that includes a central processing unit (CPU), memory (both
program memory and data memory), input/output peripherals, and various support
functions. Microcontrollers are designed to execute specific tasks or control
dedicated devices. They are commonly used in embedded systems where they
provide intelligence and control for various applications.
Example of a Microcontroller:
One popular example of a microcontroller
is the Arduino family, which uses various microcontroller chips (like the
ATmega series from Atmel/Microchip). Arduino boards are widely used for
hobbyist and educational projects, making it easier for enthusiasts to create
interactive electronic systems.
Importance of Microcontrollers:
Microcontrollers play a vital role in
modern technology, and their importance stems from several key factors:
Embedded Systems:
Microcontrollers are the "brains" behind countless embedded systems,
which are part of everyday life. They are used in devices like microwave ovens,
washing machines, automotive control systems, smartphones, and much more.
Cost-Effective:
Microcontrollers are cost-effective and efficient solutions for specific tasks.
They are designed to perform dedicated functions, eliminating the need for a
full-fledged computer system in many applications.
Customization:
Engineers and developers can program microcontrollers to perform specific
functions, making them highly customizable for various applications. This
flexibility is valuable in fields like robotics, automation, and IoT.
Low Power Consumption:
Many microcontrollers are designed for low power consumption, making them ideal
for battery-powered devices or applications where energy efficiency is
critical.
Real-Time Control:
Microcontrollers are suitable for real-time control applications, where rapid
response to external stimuli is essential. This is important in applications
like automotive systems, industrial automation, and medical devices.
Ease of Use:
Many microcontroller platforms, such as Arduino and Raspberry Pi, offer
user-friendly development environments and extensive online resources, making
it accessible to hobbyists and students.
Prototyping and Rapid Development:
Microcontrollers are essential for prototyping and rapid development of
electronic projects, enabling innovators to bring their ideas to life quickly.
Education:
Microcontrollers are widely used in educational settings to teach programming,
electronics, and engineering concepts. They offer hands-on experience with
real-world applications.
IoT and Connectivity:
With the growth of the Internet of Things (IoT), microcontrollers are
increasingly important for connecting devices to the internet, enabling smart
homes, wearables, and remote monitoring systems.
Compact Size:
Microcontrollers are compact, saving space in devices and allowing for
integration into smaller and portable products.
Microprocessor
A microprocessor is the central processing
unit (CPU) of a computer or a digital device. It is a small semiconductor chip
that contains millions or even billions of transistors and serves as the
"brain" of the device. Microprocessors are responsible for executing
instructions, performing calculations, and controlling the overall operation of
the system.
Example of a Microprocessor:
One of the most well-known examples of a
microprocessor is the Intel 8086, which was introduced in 1978. It played a
significant role in the development of early personal computers and served as
the basis for the x86 architecture that is still in use today.
Importance of Microprocessors:
The importance of microprocessors cannot
be overstated due to the following reasons:
Central Control:
Microprocessors serve as the central control unit for computers and electronic
devices, managing all tasks and executing instructions.
Processing Power:
Microprocessors are designed to perform billions of instructions per second,
making them capable of handling complex calculations, data processing, and
multitasking.
Versatility:
Microprocessors are versatile and can be programmed to perform a wide range of
tasks, from general-purpose computing to specific applications in various
industries, such as automotive, aerospace, and healthcare.
Advancements in Technology:
Advances in microprocessor technology have driven innovation in the tech
industry, enabling the development of faster and more efficient computers and
devices.
Miniaturization:
Microprocessors have become increasingly smaller and more power-efficient over
time, allowing for the creation of smaller and more portable devices, including
smartphones, laptops, and IoT devices.
Automation:
Microprocessors are essential in automation systems, robotics, and control
systems, contributing to increased efficiency in manufacturing and industrial
processes.
Connectivity:
Microprocessors are key components in devices that require connectivity, such
as smartphones, tablets, and IoT devices, enabling communication with other
devices and the internet.
Digital Signal Processing:
Microprocessors with specialized architectures are used in applications that
require digital signal processing, such as audio processing, image processing,
and telecommunications.
Research and Development:
Microprocessor innovation drives research and development efforts in the
semiconductor industry, leading to more powerful and energy-efficient chips.
Consumer Electronics: Microprocessors are at the heart of consumer electronics, including televisions, gaming consoles, and home appliances, providing advanced features and functionality.
Difference between Microcontroller
and Microprocessor
|
S.N |
Microcontroller |
Microprocessor |
|
1 |
Microcontrollers
are highly integrated devices that typically combine a CPU, memory (both
program and data memory), input/output peripherals, timers, and often analog
components, all on a single chip. |
Microprocessors
primarily consist of the CPU and a small amount of cache memory. They lack
integrated peripherals and require external components to function as a
complete system |
|
2 |
Microcontrollers
are designed for specific, dedicated tasks. They are commonly used in
embedded systems where they control devices or perform specific functions. |
Microprocessors
are general-purpose devices that can run a variety of applications and
operating systems. They are the CPU in personal computers and other general
computing devices. |
|
3 |
Microcontrollers
are often found in applications like automotive control systems, home
appliances, industrial automation, and IoT devices. |
Microprocessors
are used in desktop and laptop computers, servers, gaming consoles, and a
wide range of general-purpose computing devices. |
|
4 |
Microcontrollers
have limited processing power compared to microprocessors. They are optimized
for low power consumption and specific tasks. |
Microprocessors
are designed for high computational power and can handle complex instructions
and multitasking. |
|
5 |
Microcontrollers
are typically designed for low power consumption, making them suitable for
battery-powered and energy-efficient applications. |
Microprocessors
can consume more power, especially when running resource-intensive
applications, and may not be as energy-efficient. |
|
6 |
Microcontrollers
often include built-in peripherals like analog-to-digital converters, timers,
and communication interfaces. They may require fewer external components for
a complete system. |
Microprocessors
require additional external components, including memory, input/output
controllers, and other support chips, to function as a complete system. |
|
7 |
Microcontrollers
are typically more cost-effective, as they are designed for specific
applications, and their integrated features reduce the need for external
components. |
Microprocessors
can be more expensive due to their general-purpose nature and the need for
additional components to create a complete system. |
Arduino
Arduino is an open-source hardware and
software platform designed for building and prototyping electronic projects. It
consists of a microcontroller board, an integrated development environment
(IDE) for programming, and a supportive community. Arduino is widely used for
various applications, from simple LED blinking projects to complex robotics and
IoT (Internet of Things) systems.
Introduction of Arduino:
Arduino was first introduced in 2005 by a
group of students at the Interaction Design Institute Ivrea (IDII) in Ivrea,
Italy. The project was created as a tool to simplify the process of designing
and building interactive and programmable devices for non-engineers, artists,
and hobbyists. It aimed to provide an accessible and cost-effective platform
for people interested in electronics and programming.
Arduino Pins and Working Principle:
Arduino boards come in various models, but
a common example is the Arduino Uno, which features several pins with specific
functions. Here's a brief overview of the key pins on an Arduino Uno and its
working principle:
Digital Pins:
These pins (labeled from 0 to 13) can be used for digital input or output. You
can set them as HIGH (5V) or LOW (0V) to control or read digital signals. They
are commonly used for connecting LEDs, sensors, and digital devices.
Analog Pins:
Arduino Uno has six analog input pins (labeled A0 to A5). These pins can
measure analog signals from 0 to 5 volts and are often used for reading data
from sensors, such as light, temperature, or humidity sensors.
Power Pins:
3.3V: Supplies 3.3 volts of power.
5V: Supplies 5 volts of power.
Vin: The input voltage from an external
power source.
GND:
Ground pins for completing electrical circuits.
PWM Pins:
Some of the digital pins (e.g., 3, 5, 6, 9, 10, and 11) support Pulse Width
Modulation (PWM). PWM pins allow you to generate analog-like output for
controlling the intensity of LEDs, motor speed, and more.
Reset Button:
This button resets the Arduino board, restarting the program.
Pin 13 LED: this
pin includes only actuator built-in to your board. Besides being a handy target
for your first blink sketch, this LED is very useful for debugging.
Power LED: this
pin indicates that your Arduino is receiving power.it is very useful for
debugging.
ATMEGA MICROCONTROLLER:
The microcontroller is the heart of your
board.
Arduino's working principle involves
programming the microcontroller to perform specific tasks. You write code in
the Arduino IDE, which is based on the C/C++ programming languages. The code is
then uploaded to the Arduino board via a USB connection. The microcontroller
processes the code, executing instructions to interact with sensors, actuators,
and other hardware components connected to the pins. This way, you can create
interactive and programmable electronic systems and devices.
Arduino IDE (Integrated Development
Environment)
Arduino IDE, which stands for Integrated
Development Environment, is an open-source software platform used for
programming and developing software for Arduino microcontroller boards. It
provides a user-friendly interface that allows you to write, compile, and
upload code (sketches) to Arduino boards. The Arduino IDE is designed to make
it easy for both beginners and experienced developers to create and upload
programs to Arduino hardware.
Process of Downloading Arduino IDE:
To download and install the Arduino IDE,
follow these steps:
1. Visit the Arduino Software download
page on the official Arduino website: https://www.arduino.cc/en/software
2. Choose the appropriate version of the
Arduino IDE for your operating system (Windows, macOS, or Linux). Click the
download link to start the download.
3. Once the download is complete, open the
installer file.
4. Follow the installation instructions
provided by the installer. You may be asked to choose the installation
directory, create desktop shortcuts, and select the components to install.
5. After the installation is complete, you
can launch the Arduino IDE.
Importance of Arduino IDE:
The Arduino IDE is essential in the world
of Arduino development for several reasons:
1.User-Friendly Interface:
The IDE offers a straightforward and easy-to-use interface that is accessible
to beginners. It includes a code editor, serial monitor, and tools for
uploading code to the Arduino board.
2.Cross-Platform Compatibility:Arduino
IDE is available for multiple operating systems, including Windows, macOS, and
Linux, making it accessible to a wide range of users.
3.Extensive Library and Community
Support: It comes with a rich library of functions
and example code to help users get started quickly. Additionally, the Arduino
community provides a wealth of tutorials and resources.
4.Open-Source:
Arduino IDE is open-source software, allowing users to customize and enhance it
to meet their specific needs. This encourages innovation and the sharing of
knowledge.
5.Compatibility with Arduino
Hardware: The IDE is specifically designed for
Arduino boards, ensuring seamless integration with Arduino hardware.
6. Connect your Arduino board to your
computer using a USB cable.
7. In the Arduino IDE, select the correct
board model and port in the "Tools" menu. This ensures that the IDE knows
which board it's communicating with.
8. Write, edit, or open a sketch (Arduino
program) in the code editor.
9. Verify the sketch by clicking the
checkmark icon. This compiles the code and checks for errors.
10. If there are no errors, upload the sketch
to the Arduino board by clicking the right-arrow icon. The code will be
transferred to the board, and your project will run.
You are now ready to start creating and
uploading Arduino sketches to your board using the Arduino IDE. It's a powerful
and user-friendly tool for developing a wide range of electronic projects.
Integrated Development Environment (IDE):
Different menus with variety of option are
available in Arduino IDE which makes it easy to use. Few important and most
frequently used icons are discussed as under:
Brief knowledge of Arduino Nav Bar
Arduino have above things in its IDE and
below in the description all of the things are described:
1) File
In the file section there are a lot of sub section in it and they are shown below:
i)
New (Ctrl+N) :
For the new new
blank file we go in file and click on new or directly we press Ctrl+N
command.By this the new dialogue box will appear and you can start coding.
ii)
Open (Ctrl+O):
After opening of Arduino ide and you want to work on
your previos file or work the you need to go on file and click on Open or press
command Ctrl+O after that select your previous file and you can start working
on that.
iii)
Example :
In the example section there are very important code
and from the basic to advance so that in the begeining of you can start
learning from the example code.In example there are more than 100s of code.so
in the initial phase it is better to learn from the code of example.
iv)
Close:
After writing the code and saving in your folder. You
can click on close button to close the entire dialogue box of Arduino IDE.
v)
Save /save as
After completing the programing of your project you
can click on file and click on save to save your project file in your computer
or laptop.You need to remember that the file extension should be in .ino .
vi)
Preferences:
In
the preference section you will add the additional microcontroller url or link
to setup in your Arduino IDE,For example if you need to add ESP32,ESP8266
microcontoller board you need to add its url or link in the preference.
1) Sketch
Sketch is one of the most
important function in the Arduino IDE because it gives us the features of
verify/compile ,upload,upload using programmer ,export compiled binary,show
sketch folder, include library and Add file.were as we use mostly following
function while writing the program for your project.
i)
Verify / Compile (Ctrl+
R)
ii)
Uplod (Ctrl + U)
iii)
Include Library
i)
Verify/Compile (Ctrl + R)
After completing your code , if you fell
that you have done something wrong and you want to check that whether your code
is correct or not then you can click on verify and compile function then it
will compile your code and if there is any mistake in your code then it will
show the error in your Arduino IDE.After finding the error you can solve that
program and verify again and again till your programs get right/correct.
ii)
Uplod (Ctrl + U)
After writing the
code completely or partially and want to check with your hardware device and
want to upload in your microcontroller then you need to click on upload section
then your program which you have written in your Arduino IDE platform will
upload in your Arduino hardware device.
iii)
Include Library
While working on your projects you will be working
with different sensor and microcontroller you need various different library to
work,so different sensor have different-different way of working principal so
we need to include different library so that it can support and shows no error
in your project code.
1) Tools
:
In the Tools section there
are various function enlisted in it whereas most frequently used functions are
listed below:
i)
Auto Format
ii)
Manage Libraries..
iii)
Serial Monitor
iv)
Serial Plotter
v)
Board
vi)
Port
vii)
Get board Info
i)
Auto Format:
While writing the
code of your projects your code will seems to to messy and get difficult to
understand mainly while working with function and loop at that time we will
click on Auto format after that your code will be in a proper format.
ii)
Manage Libraries
Managing libraries
in the Arduino IDE is like adding new tools to your toolbox to make building
projects easier. Imagine you're making a robot and need a special sensor to
detect obstacles. Instead of writing all the code for the sensor from scratch,
you can use a library. It's like borrowing a ready-made code package! In the
Arduino IDE, you click on "Sketch", then "Include Library",
and finally "Manage Libraries...". Let's say you need a library for
your obstacle sensor. You type its name in the search bar, click
"Install", and voila! Now, whenever you need the obstacle sensor in
your code, you just include the library by clicking on "Sketch", then
"Include Library", and choosing the one you installed. If there's an
update for the library, the IDE will let you know, making sure you always have
the latest and greatest tools for your projects.
iii)
Serial Monitor
he Serial Monitor
is like a little chat window between your computer and the Arduino. It's like
texting your Arduino to tell it what to do or asking it what's up. Let's say
you got a project where you want to control a little fan with your Arduino. You
write some code that tells the Arduino to turn the fan on if you type '1' and
off if you type '0' in the Serial Monitor. Then, you open up that Serial
Monitor thing from the menu, type '1', and hit Enter. Boom! The fan starts
spinning. Type '0', hit Enter again, and the fan stops. It's like having a
super simple conversation with your Arduino to make cool stuff happen.
iv)
Serial Plotter
the Serial Plotter
in the Arduino IDE is like a magic window that shows you what's happening with
your sensors and stuff in real-time. Imagine you're working on a project with a
temperature sensor. You write some code to read the temperature and send it to
the Serial Plotter. When you open up the Serial Plotter from the
"Tools" menu, you see this graph that shows the temperature going up
and down as it changes. It's like watching a movie of your sensor data! So, if
it gets hotter or colder, you'll see the line on the graph move accordingly.
It's super handy for seeing how things change over time and understanding
what's going on with your project without having to stare at numbers all day.
v)
Board
the
"Board" in the Arduino IDE is like telling your computer which type
of Arduino you're using. It's kinda like picking the right tool for the job.
Let's say you're working with an Arduino Uno, you gotta make sure you tell the
IDE that's what you're using. So, you go to the "Tools" menu, click on
"Board", and select "Arduino Uno" from the list. It's like
telling your computer, "Hey, we're using this type of Arduino, so get
ready for it!" Once you do that, the IDE knows how to talk to your Arduino
and make sure everything runs smoothly. It's like making sure you've got the
right key for the right lock, so everything fits together perfectly.
vi)
Port
the
"Port" in the Arduino IDE is like telling your computer where to find
your Arduino. It's kinda like giving directions to a friend, so they know which
house to go to. Let's say you've plugged your Arduino into a USB port on your
computer. Now, you gotta tell the IDE which port it's on so it can talk to your
Arduino. You go to the "Tools" menu, click on "Port", and
select the one that says something like "COM3" or "/dev/tty.usb-modem".
It's like telling your computer, "Hey, my Arduino is chilling over here,
so come say hi!" Once you do that, the IDE knows where to find your
Arduino and can start sending it all the cool stuff you want it to do. It's
like making sure your mail gets delivered to the right address, so everything
gets where it needs to go.
vii)
Get Board Info
Icons
Beside file,, sketch, tools of Arduino IDE
we have some icon in the Arduino which have very important role while writing
the code as well,so here we describe the use of icon which are seen in the
Arduino IDE:
1) Verify
Icon:
the "Verify" icon in the Arduino
IDE is like double-checking your homework before you turn it in. It's kinda
like making sure you didn't miss any typos or mistakes. Imagine you've written
this awesome code for your Arduino project, but before you upload it to your
board, you wanna make sure it's all good to go. So, you click on that little
checkmark icon at the top left corner of the IDE window. It's like saying,
"Hey, computer, check this code and make sure it's all okay." When
you click on it, the IDE goes through your code line by line, looking for any
errors or problems. If everything's cool, it gives you a thumbs-up and says,
"Code looks good, buddy!" But if it finds any mistakes, it's like,
"Hey, you gotta fix these things before you can move on." So, you go
back, make some tweaks, and then click on that Verify icon again until
everything's perfect. It's like having your own personal code checker to make
sure your projects run smoothly!
2) Upload
Icon:
3) New:
4) Open:
5) Save:
the "Save" icon in the Arduino
IDE is like hitting the "save" button on your favorite video game -
it's how you make sure you don't lose all your progress. Imagine you've just
written this awesome code that makes your robot do backflips, and you wanna
make sure you don't accidentally delete it. You click on that little floppy
disk icon, and it's like saying, "Hey, computer, remember this!" The
IDE takes all your code and saves it to a safe place on your computer. It's
like putting your masterpiece in a vault, so you can come back to it whenever
you want. Now you can rest easy knowing that all your hard work is safe and
sound. It's like having a backup plan for your creativity!
1)
the "Serial Monitor" icon in the
Arduino IDE is like peering through a window into the heart of your project.
It's like having a chat with your Arduino to see what it's up to. Imagine
you've got this code that's supposed to make your robot follow lines, but you
wanna see if it's reading the sensors correctly. You click on that little
magnifying glass icon, and it's like saying, "Hey, show me what you
got!" The IDE opens up this window where you can see all the messages your
Arduino is sending out. It's like having a secret spy camera inside your
project, showing you all the action in real-time. Now you can debug your code,
tweak your settings, and make sure everything's running smoothly. It's like
being a detective, solving mysteries and cracking codes to make your project
the best it can be!
2) Void
setup () { __}:
3) Void
loop () {__}:
Arduino
programing
Arduino
programming is like learning a new language, but instead of talking to people,
you're talking to machines! With Arduino, you can create all sorts of cool
projects, from robots and gadgets to interactive art installations. The
programming language used for Arduino is based on C/C++, but don't worry if
you're not a coding pro – it's pretty beginner-friendly!
The basic structure of an Arduino
program consists of two main parts: setup() and loop(). In the setup()
function, you set up any initial configurations or settings, like telling the
Arduino which pins you're going to use. Then, in the loop() function, you write
the instructions that you want your Arduino to carry out repeatedly, like
reading sensor data, controlling motors, or blinking LEDs.
Arduino also comes with a bunch of
built-in functions and libraries that make it easy to interact with hardware
components, like sensors, motors, and displays. These functions handle all the
nitty-gritty details of talking to these components, so you can focus on
bringing your ideas to life.
One of the best things about Arduino
programming is that there's a huge community of makers and tinkerers out there
sharing their projects and code. So if you ever get stuck or need inspiration,
you can always find help or borrow code from others to get you started.
Overall, Arduino programming is a fun
and rewarding way to bring your ideas to life, whether you're a total beginner
or an experienced coder. So grab an Arduino board, fire up the IDE, and start
creating!
Lets head toward the one of the simple
example of Arduino programing and we will move forward with the programing.
void setup () {
//
Set pin 13 as an output
pinMode(13, OUTPUT);
}
void loop () {
//
Turn the LED on
digitalWrite(13, HIGH); // Wait for 1 second
delay(1000); // Turn the LED off
digitalWrite(13, LOW); // Wait
for 1 second
delay (1000);
}
Arduino
Coding Concept
Learning Arduino coding is an exciting
journey into the world of electronics and programming. Whether you're a
beginner or already have some coding experience, Arduino offers a fun and
accessible way to bring your ideas to life. Here's a simple guide to getting
started:
1. Understanding the Basics: Start by
familiarizing yourself with the basics of Arduino and electronics. Learn about
the different Arduino boards available, how they work, and the components
needed for projects. Understand concepts like digital and analog pins, input
and output, and how to read schematics.
2. Setting Up: Get yourself an Arduino
board (such as Arduino Uno) and download the Arduino IDE (Integrated
Development Environment) onto your computer. The IDE is where you'll write,
compile, and upload your code to the Arduino board.
3. Writing Code: Begin by learning the
syntax of Arduino's programming language, which is based on C/C++. Start with
simple projects like blinking an LED or reading input from a button. Break down
the code into smaller parts and understand how each line works. Experiment with
different functions and commands to see how they affect your project.
4. Hands-on Projects: The best way to
learn Arduino coding is by doing hands-on projects. Start with simple projects
and gradually increase the complexity as you gain confidence. There are plenty
of tutorials and project ideas available online to help you get started. Build
projects that interest you, whether it's a weather station, a robot, or an
interactive art installation.
5. Troubleshooting: Don't be discouraged
if things don't work perfectly the first time. Debugging is a normal part of
the learning process. Learn how to troubleshoot common issues like incorrect
wiring, syntax errors, or hardware problems. Use tools like serial debugging
and serial monitor to understand what's happening in your code.
6. Experiment and Explore: Arduino coding
is all about experimentation and exploration. Don't be afraid to try new things
and push the boundaries of what you can do with your Arduino board. Join online
communities, forums, and maker spaces to connect with other Arduino
enthusiasts, share ideas, and get feedback on your projects.
7. Practice, Practice, Practice: Like any
skill, learning Arduino coding takes practice. Keep coding, building, and
experimenting with new projects. The more you practice, the more confident
you'll become in your coding abilities, and the more you'll learn along the
way.
Lets start the journey of Arduino coding:-
Data
Type
In Arduino programming, data types are
like the different kinds of containers you can use to store information. They
tell the Arduino how to interpret and manipulate the data in your program. Here
are the main data types used in Arduino:
1. Integer (int):This data type is used to
store whole numbers. It can hold values from -32,768 to 32,767 (16-bit) or
-2,147,483,648 to 2,147,483,647 (32-bit), depending on the Arduino board you're
using.
.2. Unsigned Integer (unsigned int): Similar
to an integer, but it can only hold positive whole numbers. It has a range from
0 to 65,535 (16-bit) or 0 to 4,294,967,295 (32-bit).
3. Byte (byte): This data type is used to store 8-bit unsigned numbers. It can hold values from 0 to 255.
4. Float: This data type is used to store
floating-point numbers (numbers with a decimal point). It can hold values with
fractional parts.
5. Double: Similar to float, but it can
hold larger and more precise floating-point numbers. However, it requires more
memory compared to float.
6. Boolean (bool): This data type is used
to store true or false values.
7. Character (char): This data type is
used to store single characters. It can hold any ASCII character, including
letters, numbers, and symbols.
Arithmetic
Operator
In Arduino programming, arithmetic
operators are like the tools you use to perform mathematical calculations. They
allow you to manipulate numerical values in your code. Here are the main
arithmetic operators used in Arduino:
1. Addition (+): It adds two values
together.
2. Subtraction (-): It subtracts one value
from another.
3. Multiplication (*): It multiplies two values.
4. Division (/):
It divides one value by another.
5. Modulo (%): It returns the remainder of
a division operation.
.png&w=828&q=75)
