To understand the functioning of a diode under reverse-biased conditions

Project : 29

Diode Action (in Reverse bias)

If you want to post your project ,research or any document related to Ai,Ml,IoT,Robotics then please email us with your image ,details and your project at blog@nepatronix.org

Project Aim:

To understand the functioning of a diode under reverse-biased conditions.

Components Used:

1. Power Supply

2. LED

3. Resistor 220Ω

4. Diode

5. Connecting Wires

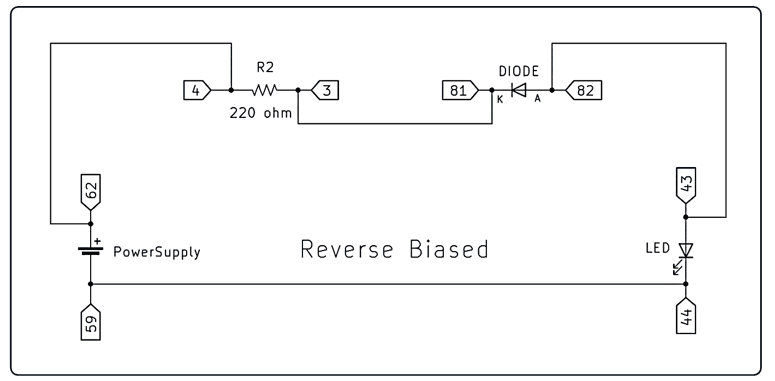

Circuit Diagram:

Connection Procedure:

Step 1: Connect the positive terminal of the power supply (Pin 62) to one end of the resistor 220Ω (R2, Pins 4).

Step 2: Connect the other end of the resistor 220Ω (Pin 3) to the cathode of the Diode (Pin 81).

Step 3: Connect the anode of the Diode (Pin 82) to the anode of the LED (Pin 43).

Step 4: Connect the cathode of the LED (Pin 44) to the negative terminal of the power supply (Pin 59).

Explanation:

In this project, we'll explore the behavior of a diode when it's reverse biased. A diode is a component with two terminals: the anode (+Ve) and the cathode (-Ve). It's commonly used for switching applications. When the diode is reverse biased, meaning the anode connects to the negative terminal of a battery and the cathode to the positive terminal, it acts like an open switch. This means it doesn't conduct current, and consequently, the LED connected to it won't glow.
