Solar Panel and Buzzer with Button(STEAM Education)

  Back To Blogs

To understand the conversion of solar light energy into electrical energy and its application in powering and play Buzzer with the control of a push button.

Project : 17


Solar Panel and Buzzer with Button



Project Aim:

To understand the conversion of solar light energy into electrical energy and its application in powering and play Buzzer with the control of a push button.

Components Used:

1.     Solar Panel

2.     Push Button

3.     Buzzer

4.     Connecting Wires

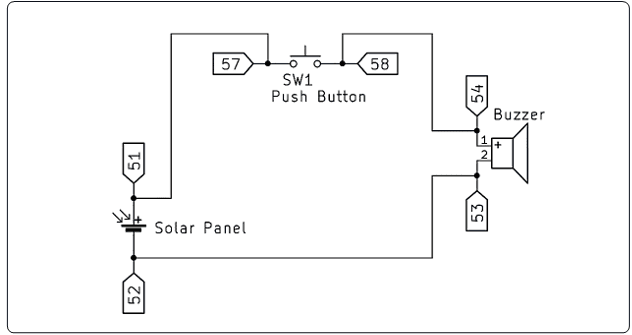

Circuit Diagram:




If you want to post your project ,research or any document related to Ai,Ml,IoT,Robotics then please email us with your image ,details and your project at blog@nepatronix.org

Connection Procedure:

Step 1: Connect the positive terminal of the solar panel (Pin 51) to one terminal of the push button (Pin 57).

Step 2: Connect the other terminal of the push button (Pin 58) to the positive terminal of the buzzer (Pin 54).

Step 3: Connect the negative terminal of the buzzer (Pin 53) to the negative terminal of the solar panel (Pin 52).

Step 4: Ensure that the components are securely connected and the circuit is properly insulated to prevent short circuits.

Step 5: Take the circuit under sunlight (or any source of light) falls on the solar panel, it generates electrical energy that powers the circuit, whenever the Push Button is pressed the Buzzer will BEEP.



Explanation:

In this project, we're showcasing how solar energy can be harnessed effectively. We've connected a solar panel to a buzzer via a switch button in series. When sunlight hits the solar panel, it energizes the solar cell, converting light energy into electrical voltage. The Buzzer only BEEPS when the switch is pressed, demonstrating the conversion of solar energy into usable electricity.


If you want to post your project ,research or any document related to Ai,Ml,IoT,Robotics then please email us with your image ,details and your project at blog@nepatronix.org
