Smart Bell(Automation Project)

  Back To Blogs

This project aims to create a smart doorbell system using an ESP32 microcontroller. The system integrates a relay, buzzer, and transistor to notify users of a visitor's presence, and an RTC (Real-Time Clock) module for timekeeping. The project demonstrates how IoT can be utilized for smart home automation, enhancing security and convenience.

Project : 51


Introduction:

This project aims to create a smart doorbell system using an ESP32 microcontroller. The system integrates a relay, buzzer, and transistor to notify users of a visitor's presence, and an RTC (Real-Time Clock) module for timekeeping. The project demonstrates how IoT can be utilized for smart home automation, enhancing security and convenience.


Components Used:

  1. ESP32 Microcontroller: The main control unit that processes inputs and manages the system.
  2. Resistors: For current limiting and protection of components.
  3. Relay: Used to control external devices like a doorbell or light.
  4. Buzzer: Provides an audible alert when the doorbell is pressed.
  5. Transistor: Acts as a switch to control the buzzer and relay.
  6. RTC (Real-Time Clock) Module: Keeps track of the current time, allowing for time-stamped notifications.
  7. Connecting Wires: To connect buzzer to the relay.
  8. Barrel Jack: To power the ESP32 and other components.

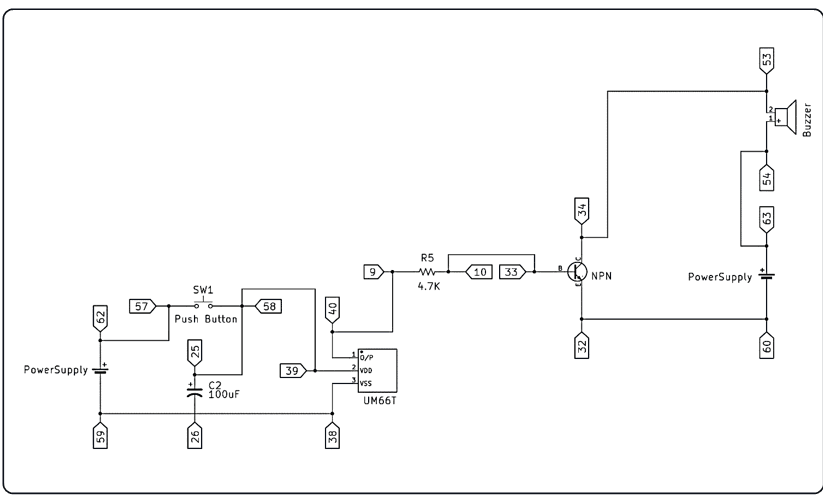

  9. Schematic Diagram:



PCB Design:


  1. 3D view:

Pin Configuration

    • Relay Control Pin: Connected to D23 of the ESP32.
    • Buzzer Control Pin: Connected to GPIO 18 of the ESP32.
    • RTC Module Pins: Connected via I2C (SDA and SCL pins on ESP32).

  1. Libraries Used


  2. 1.    Wire: For I2C communication with the RTC module.

    2.    RTC lib: For interfacing with the RTC module.

    3.    Wi-Fi: For connecting the ESP32 to a Wi-Fi network.

    Code:

    Code is in the following GitHub repository:

    4mrit/open-smart-bell-firmware-esp32 (github.com)

     Working:

1.    Initialization:

o   The ESP32 initializes serial communication at 115200 baud rate.

o   The RTC module is initialized for timekeeping.

o   Wi-Fi connection is established using the provided SSID and password.

o   Microcontroller is listening on asynchronous web server to control the time, schedule and other controls instead of BLYNK.

2.    Main Loop:

o   The main loop does the below mentioned:

-        time sync(1day)

-        Wi-Fi connection (1 min)

3.    Notify User Function:

o   Activates the relay and buzzer to notify the user of a visitor.

o   Sends a notification to the asynchronous web server with a timestamp of the event.

    Testing:

1.    Setup: Assemble all components as per the pin configuration.

2.    Power Up: Power the ESP32 and ensure all components are properly powered.

3.    Wi-Fi Connection: Ensure the ESP32 is connected to the Wi-Fi network and can communicate with the Blynk server.

4.    Button Testing: Simulate the doorbell button press to test the system's response. The relay and buzzer should activate, and the asynchronous web server receive a notification.

5.    Monitoring: Continuously monitor the for notifications to ensure proper functioning in asynchronous web server.


    Use of this project:

           1.    School/Colleges

           2.    Hospitals

           3.    As alarm in house


    Conclusion:

    The Smart Bell project successfully demonstrates the use of an ESP32 microcontroller for a smart doorbell system. By integrating a relay, buzzer, and RTC module, the project provides a reliable and real-time notification system. The use of IoT technology enhances the functionality and user experience of traditional doorbell systems, offering both local and remote alerts.

    Group members:

         1.    Amrit Paudel (Group Leader)

         2.    Sushant Kafle

         3.    Bibek Bishwokarma

         4.    Bebas Pandey

         5.    Kriti Devi Sharma

         6.    Biplov Basnet


       College Name: Nepathya College
