Solar LED with Button(STEAM Education)

  Back To Blogs

To understand the conversion of solar light energy into electrical energy and its application in powering a LED light with the control of a push button.

Project : 16


Solar LED with Button



Project Aim:

To understand the conversion of solar light energy into electrical energy and its application in powering a LED light with the control of a push button.

Components Used:

1.     Solar Panel

2.     Push Button

3.     Resistor 220Ω

4.     LED

5.     Connecting Wires

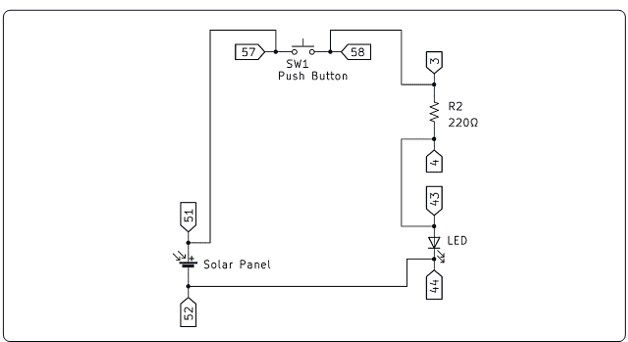

Circuit Diagram:



If you want to post your project ,research or any document related to Ai,Ml,IoT,Robotics then please email us with your image ,details and your project at blog@nepatronix.org


Connection Procedure:

Step 1: Connect the Positive terminal of the Solar Panel (Pin 51) to one terminal of the Push Button (Pin 57).

Step 2: Connect the other terminal of the Push Button (Pin 58) to one Pin of Resistor 220Ω (R2, 3).

Step 3: Connect the other terminal Resistor 220Ω (R2, 4) to the Anode of the LED (Pin 43).

Step 4: Connect the Cathode of the LED (Pin 44) to the Negative terminal of the Solar Panel (Pin 52)

Step 5: Ensure that the components are securely connected and the circuit is properly insulated to prevent short circuits.

Step 6: Take the circuit under sunlight (or any source of light) falls on the solar panel, it generates electrical energy that powers the circuit, whenever the Push Button is pressed the LED will glow.





Explanation:

In this project, we're exploring how solar panels work by harnessing sunlight to generate electricity. When sunlight hits the solar panel, it activates the solar cells inside, converting light energy into electrical voltage. This generated voltage powers an LED connected in series with the solar panel. However, the LED will only illuminate (glow) when the push button is pressed, indicating that the circuit is complete and allowing the electricity to flow through the LED. This setup helps us understand the practical application of solar energy and how it can be used to power devices in an efficient and sustainable manner.
